10 years of experience in cutting plotting machine production, annual export volume of cutting plotting machines is 100,000
Since 2014
Hefei Huiwo Digital Control Equipment Co., Ltd
Hefei Huiwo Digital Control Equipment Co., Ltd. is an integrated enterprise engaged in R&D, production, sales, and maintenance of digital control equipment. With standardized factory areas, nearly a hundred experienced professional employees, we are a first-class production enterprise with an annual production capacity of more than 100,000 pcs. Our products adhere to the mid-to-high end market that can meet specific needs of customers, and we can supply different products solvation for customers. We have a professional technician and design team to ensure the rationality of products design and products stability, to provide users with more related products.
Our main products: cutting plotters, heat press machines, small CNC routers, inkjet plotters, etc.
Our advantage: We rely on advanced technology, high-quality accessories, perfect technology to ensure the quality of the machine, and have won several innovative achievements and patents. Because of the company's outstanding performance in the industry, we were awarded the honor of "High-tech Enterprise" by the state. We obtained certificates of CE, TUV, ROHS, EMC, LVD, etc., and exported to more than 60 countries and regions, such as Europe, America, Southeast Asia, and the Middle East. For higher quality and competitive price, our products have won unanimous praise from customers.
Products advantages: Various models of products have been applied for” national utility model patent”, which are suitable for advertising labels, industry, education, and other industries.
Service advantage: We follow the principle of "customer first, service first" to provide customers with high-quality products and services! We aim to become the world's most high-quality CNC equipment suppliers, and work for hand in hand with new and old friends from all over the world to achieve great success
custom products service is available
We provide 24 hours after-sales service for cutting plotters to ensure all of our customers can find me in any time.
Our dedicated team of professionals is committed to assisting you with any issues or concerns you may encounter. Count on us for timely support and tailored solutions to meet your specific needs.

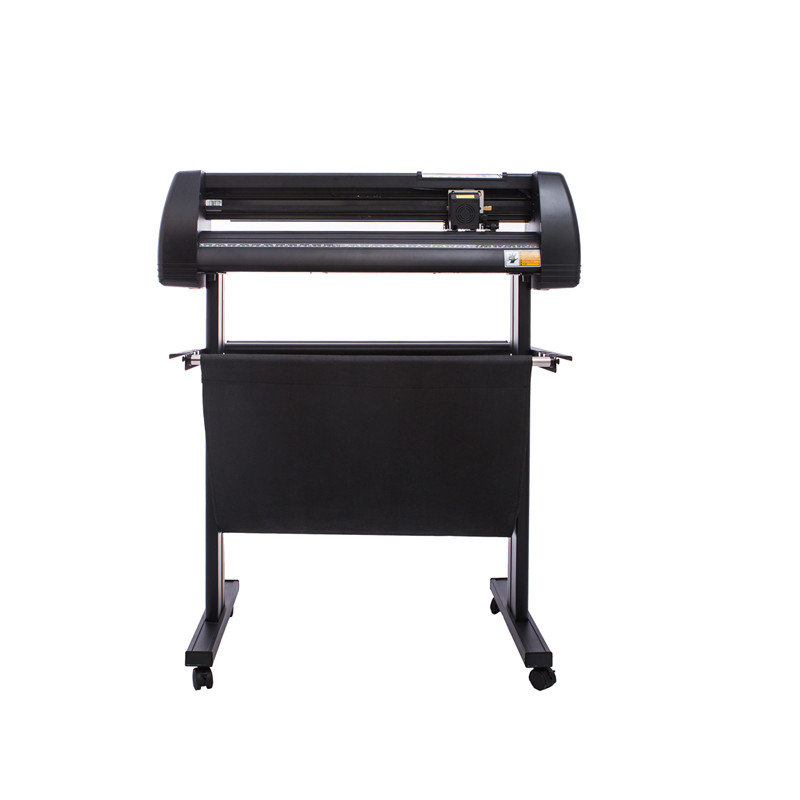

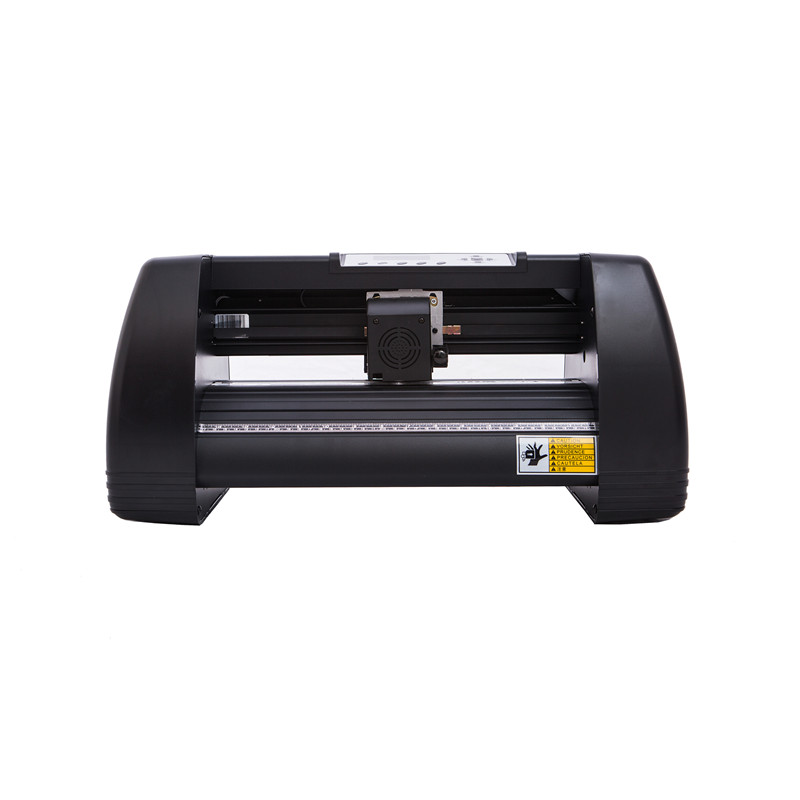

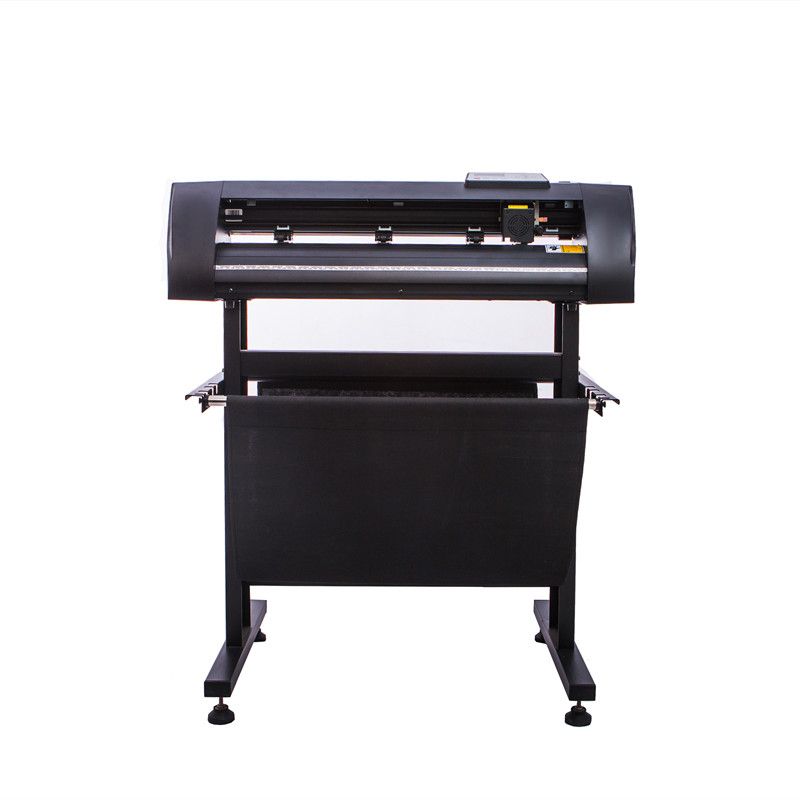

Product Description
Model
EH-450
EH-720
EH-1350
Max. media width
450mm
720mm
1350mm
Max. cutting width
360mm
630mm
1260mm
Main board
ARM
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/U-disk
Feeding Roller
Al roller
Drive motor
Stepper motor
Carriage
Casting car
Stand
NONE/Metal bracket with basket
Speed
20-800mm/s
Force
20-500g
Power supply
AC 85-264V
Recommend software
Signmaster,Artcut,Coreldraw,Signcut,Flexi
Machine power
< 100W
Packing Size
750*330*350mm
1020*330*420mm
1650*330*420mm
Weight
14KG
27KG
38KG
Introduction:Adjustable the pinch-rollers according to the paper width. Digital adjusts the force and speed to handle the cutting process. Inertial rotating blade holder enables more accurate and high-quality cutting. The emergency stop/start feature allows you to stop cutting and restart. Backlight LCD for easier handling of the working process. USB connection is accomplished through serial.
Application:
It can be used for cutting indicator/ advertisement sign/ window decoration/ automobile film/ heat transfer lettering film. Suitable for advertising industry, Automobile beauty industry, fashion design industry,etc,
Detailed Images
Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinklepaper, pressure balance.
Control Panel(Screen& Key Board)
Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate
Cast aluminum carriage
Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.
USB& Serial Ports
Support U card,USB and COM interfaces,customer can choose freely, make
things much more convenient.
Steel thorn roller
The segmented independent steel licker roller has high paper feeding accuracy, and the length of the engraved large picture is not easy to run off. The copper core integrated pressure wheel is durable and wear-resistant.
high precision pressing wheels ensure the anti-deviation of paper feed by long distance.
Product Presentation

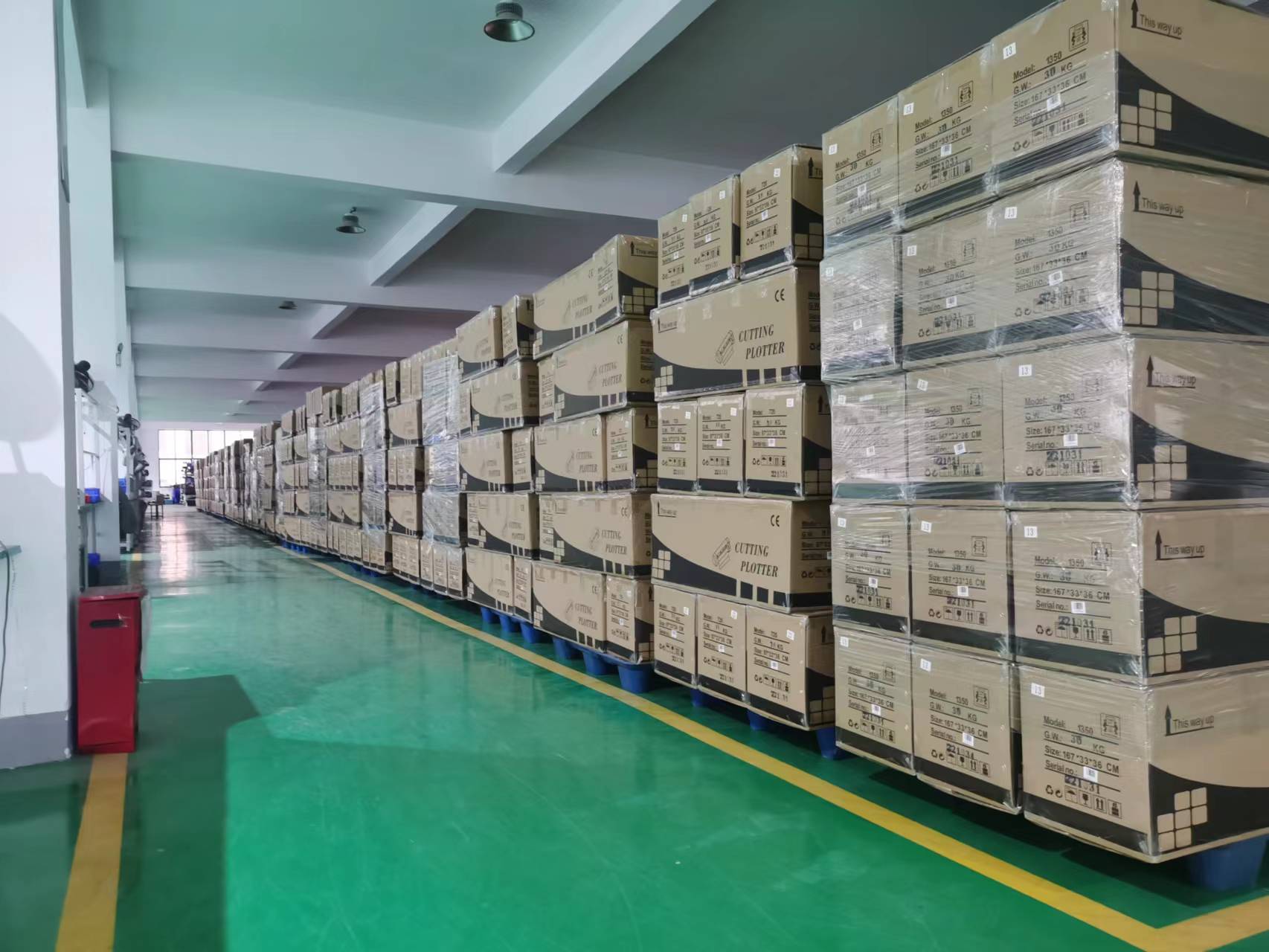

Packing&Shipping

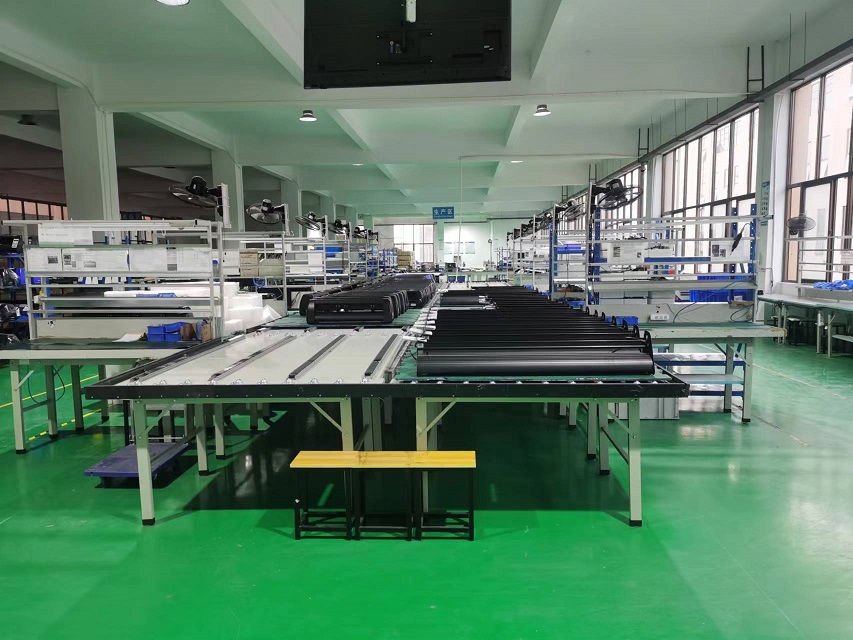

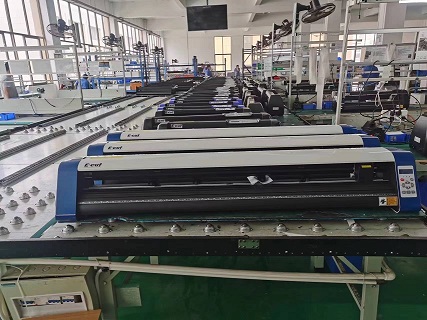

Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
Exhibition

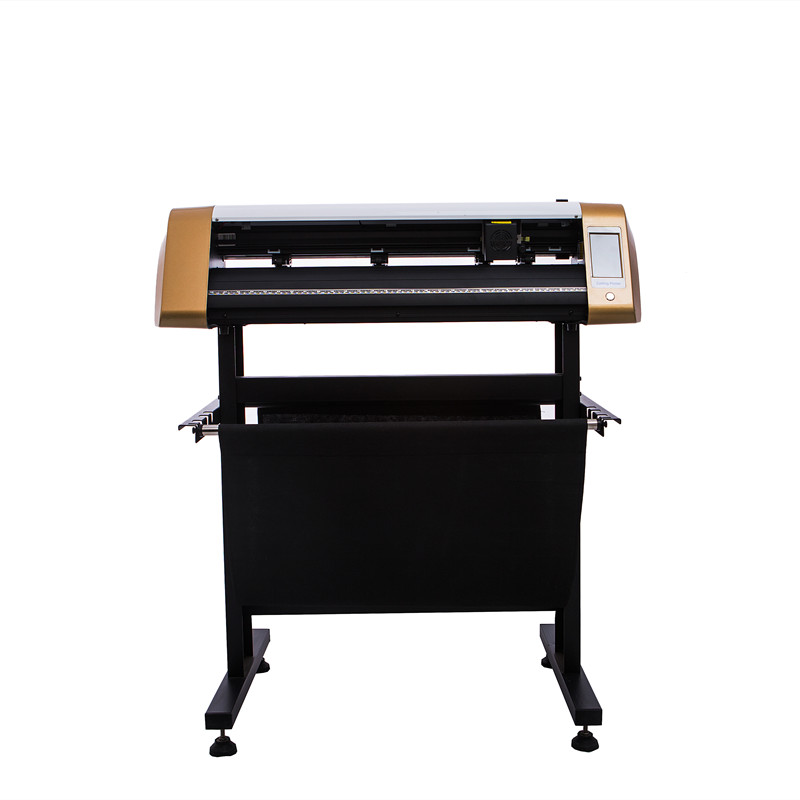

Product Description
Model
EH-450AB
EH-720AB
EH-1350AB
EH-1750AB
Max. media width
450mm
720mm
1350mm
1750mm
Max. cutting width
360mm
630mm
1260mm
1660mm
Main board
ARM
Contour type
Auto Contour
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/COM/U-disk
Feeding Roller
Al roller
Drive motor
Stepper motor
Carriage
Casting car
Stand
NONE/Metal bracket with basket
Speed
20-800mm/s
Force
20-500g
Power supply
AC 85-264V
Recommend software
Signmaster,Artcut,Coreldraw,Signcut,Flexi
Machine power
< 100W
Packing Size
750*330*350mm
1020*330*420mm
1650*330*420mm
207*33*42CM
Weight
14KG
38
27KG
45KG
Introduction:1. The paper press wheel adopts the fixed force mode with double springs to ensure that the pressure on the press wheel isuniform, so that it will not run off and cannot move the paper when working;2. High strength imported steel barbed roller, ensure the processing error, with silica gel pressure wheel, cutting large drawing,long drawing, handy;3. Support three transmission modes of USB port/serial port/USB disk. No matter it is an old computer or a new computer, a desktopor a notebook, it can be perfectly online;4. Sheet metal body, ensure accuracy of engraving and durable;5. LCD control, intuitive understanding of speed, knife pressure and other parameters;6. Large torque motor, gentle stepping, strong and powerful, easy to carve and draw thick and heavy materials;7. Built-in 1G super memory, no crash, no jam, no doodle;8. Compatible with all computer systems in the market, without any system or software
Detailed Images
Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinklepaper, pressure balance.
Control Panel(Screen& Key Board)
Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate
Cast aluminum carriage
Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.
USB& Serial Ports
Support U card,USB and COM interfaces,customer can choose freely, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
Exhibition

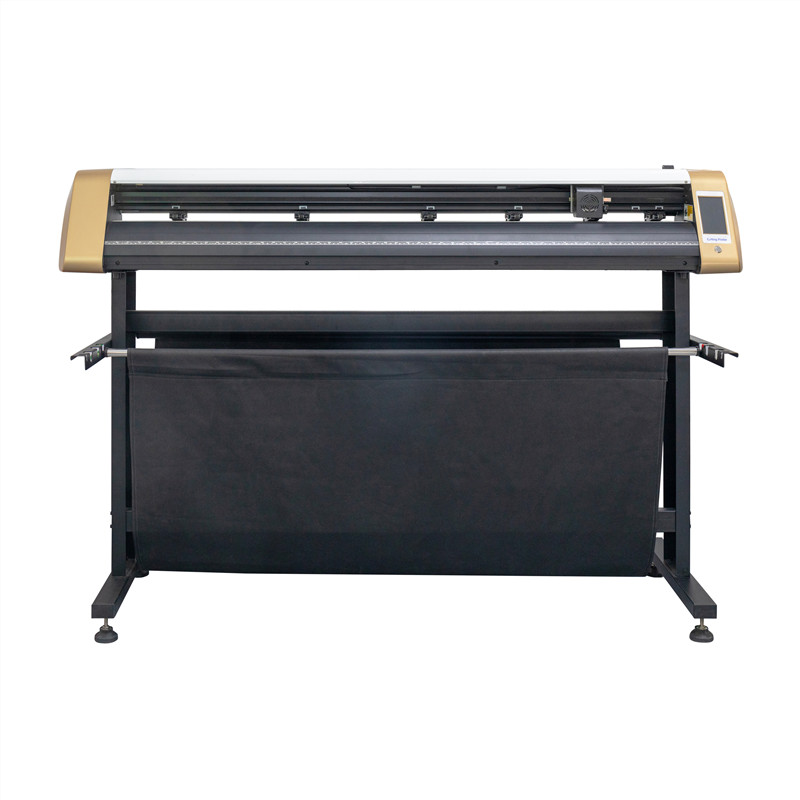

Product Description
Model
EH-450AS
EH-720AS
EH-1350AS
EH-1750AS
Max. media width
450mm
720mm
1350mm
1750mm
Max. cutting width
360mm
630mm
1260mm
1660mm
Contour type
Auto Contour
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/COM/U-disk
Feeding Roller
Steel thorn roller
Drive motor
Sevor motor
Carriage
Casting car
Stand
NONE/Metal bracket with basket
Speed
20-1200mm/s
Force
20-1000g
Power supply
AC 85-264V
Recommend software
ARTCUT, Graph-cut, Signcut、Signmaster,Flexi,CorelDRAW
Machine power
< 100W
Packing Size
750*330*350mm
1020*330*420mm
1650*330*420mm
207*33*42CM
Weight
14KG
38KG
27KG
45KG
Introduction:
1. The paper press wheel adopts the fixed force mode with double springs to ensure that the pressure on the press wheel is uniform, so that it will not run off and cannot move the paper when working;
2. High strength imported steel barbed roller, ensure the processing error, with silica gel pressure wheel, cutting large drawing, long drawing, handy;
3. Support three transmission modes of USB port/serial port/USB disk. No matter it is an old computer or a new computer, a desktop or a notebook, it can be perfectly online;
4. Sheet metal body, ensure accuracy of engraving and durable; 5. LCD control, intuitive understanding of speed, knife pressure and other parameters;
6. Large torque motor, gentle stepping, strong and powerful, easy to carve and draw thick and heavy materials;
7. Built-in 1G super memory, no crash, no jam, no doodle; 8. Compatible with all computer systems in the market, without any system or software.
Detailed Images
Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinklepaper, pressure balance.
Control Panel(Screen& Key Board)
Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate
Cast aluminum carriage
Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.
USB& Serial Ports
Support U card,USB and COM interfaces,customer can choose freely, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
Exhibition
Product Description
Model
EH-450AS
EH-720AS
EH-1350AS
EH-1750AS
Max. media width
450mm
720mm
1350mm
1750mm
Max. cutting width
360mm
630mm
1260mm
1660mm
Contour type
Auto Contour
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/COM/U-disk
Feeding Roller
Steel thorn roller
Drive motor
Sevor motor
Carriage
Casting car
Stand
NONE/Metal bracket with basket
Speed
20-1200mm/s
Force
20-1000g
Power supply
AC 85-264V
Recommend software
ARTCUT, Graph-cut, Signcut、Signmaster,Flexi,CorelDRAW
Machine power
< 100W
Packing Size
750*330*350mm
1020*330*420mm
1650*330*420mm
207*33*42CM
Weight
14KG
38KG
27KG
45KG
Introduction:
1. The paper press wheel adopts the fixed force mode with double springs to ensure that the pressure on the press wheel is uniform, so that it will not run off and cannot move the paper when working;
2. High strength imported steel barbed roller, ensure the processing error, with silica gel pressure wheel, cutting large drawing, long drawing, handy;
3. Support three transmission modes of USB port/serial port/USB disk. No matter it is an old computer or a new computer, a desktop or a notebook, it can be perfectly online;
4. Sheet metal body, ensure accuracy of engraving and durable; 5. LCD control, intuitive understanding of speed, knife pressure and other parameters;
6. Large torque motor, gentle stepping, strong and powerful, easy to carve and draw thick and heavy materials;
7. Built-in 1G super memory, no crash, no jam, no doodle; 8. Compatible with all computer systems in the market, without any system or software.
Detailed Images
Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinklepaper, pressure balance.
Control Panel(Screen& Key Board)
Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate
Cast aluminum carriage
Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.
USB& Serial Ports
Support U card,USB and COM interfaces,customer can choose freely, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
Exhibition
Product Description
Model
EH-720AS
EH-1350AS
EH-1750AS
Max. media width
720mm
1350mm
1750mm
Max. cutting width
630mm
1260mm
1660mm
Contour type
Auto Contour
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/COM/U-disk
Feeding Roller
Steel thorn roller
Drive motor
Sevor motor
Carriage
Casting car
Stand
NONE/Metal bracket with basket
Speed
20-1200mm/s
Force
20-1000g
Power supply
AC 85-264V
Recommend software
ARTCUT, Graph-cut, Signcut、Signmaster,Flexi,CorelDRAW
Machine power
< 100W
Packing Size
1020*330*420mm
1650*330*420mm
207*33*42CM
Weight
38KG
27KG
45KG
Introduction:
1. The paper press wheel adopts the fixed force mode with double springs to ensure that the pressure on the press wheel is uniform, so that it will not run off and cannot move the paper when working;
2. High strength imported steel barbed roller, ensure the processing error, with silica gel pressure wheel, cutting large drawing, long drawing, handy;
3. Support three transmission modes of USB port/serial port/USB disk. No matter it is an old computer or a new computer, a desktop or a notebook, it can be perfectly online;
4. Sheet metal body, ensure accuracy of engraving and durable;
5. LCD control, intuitive understanding of speed, knife pressure and other parameters;
6. Large torque motor, gentle stepping, strong and powerful, easy to carve and draw thick and heavy materials;
7. Built-in 1G super memory, no crash, no jam, no doodle; 8. Compatible with all computer systems in the market, without any system or software.
Detailed Images
Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinklepaper, pressure balance.
Control Panel(Screen& Key Board)
Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate
Cast aluminum carriage
Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.
USB& Serial Ports
Support U card,USB and COM interfaces,customer can choose freely, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
Exhibition
Product Description
Model
EH-720AS
EH-1350AS
EH-1750AS
Max. media width
EH-720AS
1350mm
1750mm
Max. cutting width
630mm
1260mm
1660mm
Contour type
Auto Contour
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/COM/U-disk
Feeding Roller
Steel thorn roller
Drive motor
Sevor motor
Carriage
Casting car
Stand
NONE/Metal bracket with basket
Speed
20-1200mm/s
Force
20-1000g
Power supply
AC 85-264V
Recommend software
ARTCUT, Graph-cut, Signcut、Signmaster,Flexi,CorelDRAW
Machine power
< 100W
Packing Size
750*330*350mm
1020*330*420mm
1650*330*420mm
Introduction:
1. The paper press wheel adopts the fixed force mode with double prings to ensure that the pressure on the press wheel is uniform, so that it will not run off and cannot move the paper when working;
2. High strength imported steel barbed roller, ensure the processing error, with silica gel pressure wheel, cutting large drawing, long drawing, handy;
3. Support three transmission modes of USB port/serial port/USB disk. No matter it is an old computer or a new computer, a desktop or a notebook, it can be perfectly online;
4. Sheet metal body, ensure accuracy of engraving and durable;
5. LCD control, intuitive understanding of speed, knife pressure and other parameters;
6. Large torque motor, gentle stepping, strong and powerful, easy to carve and draw thick and heavy materials;
7. Built-in 1G super memory, no crash, no jam, no doodle; 8. Compatible with all computer systems in the market, without any system or software
Detailed Images
Steel thorn roller
The segmented independent steel licker roller has high paper feeding accuracy, and the length of the engraved large picture is not easy to run off. The copper core integrated pressure wheel is durable and wear-resistant.high precision pressing wheels ensure the anti-deviation of paper feed by long distance.
--------------占位---------------
Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinklepaper, pressure balance.
Control Panel(Screen& Key Board)
HD LCD Touch screen. high brightness, high sensitive touch. Full touch screen will bring the technology era for the machine. It offers much convenience for the operation.
Cast aluminum carriage
Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.
USB& Serial Ports
Support U card,USB and COM interfaces,customer can choose freely, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
Exhibition
Product Description
Model
EH-720AS
EH-1350AS
EH-1750AS
Max. media width
EH-720AS
1350mm
1750mm
Max. cutting width
630mm
1260mm
1660mm
Contour type
Auto Contour
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/COM/U-disk
Feeding Roller
Steel thorn roller
Drive motor
Step motor
Carriage
Casting car
Stand
NONE/Metal bracket with basket
Speed
20-1200mm/s
Force
20-1000g
Power supply
AC 85-264V
Recommend software
ARTCUT, Graph-cut, Signcut、Signmaster,Flexi,CorelDRAW
Machine power
< 100W
Packing Size
750*330*350mm
1020*330*420mm
1650*330*420mm
Introduction:
1. The paper press wheel adopts the fixed force mode with double prings to ensure that the pressure on the press wheel is uniform, so that it will not run off and cannot move the paper when working;
2. High strength imported steel barbed roller, ensure the processing error, with silica gel pressure wheel, cutting large drawing, long drawing, handy;
3. Support three transmission modes of USB port/serial port/USB disk. No matter it is an old computer or a new computer, a desktop or a notebook, it can be perfectly online;
4. Sheet metal body, ensure accuracy of engraving and durable;
5. LCD control, intuitive understanding of speed, knife pressure and other parameters;
6. Large torque motor, gentle stepping, strong and powerful, easy to carve and draw thick and heavy materials;
7. Built-in 1G super memory, no crash, no jam, no doodle;
8. Compatible with all computer systems in the market, without any system or software.
Detailed Images
Steel thorn roller
The segmented independent steel licker roller has high paper feeding accuracy, and the length of the engraved large picture is not easy to run off. The copper core integrated pressure wheel is durable and wear-resistant.high precision pressing wheels ensure the anti-deviation of paper feed by long distance.
--------------占位---------------
Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinklepaper, pressure balance.
Control Panel(Screen& Key Board)
HD LCD Touch screen. high brightness, high sensitive touch. Full touch screen will bring the technology era for the machine. It offers much convenience for the operation.
Cast aluminum carriage
Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.
USB& Serial Ports
Support U card,USB and COM interfaces,customer can choose freely, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
Exhibition
Product Description
Model
KI-450AB
KI-720AB
KI-870AB
KI-1350AB
EH-1660
Max. media width
450mm
720mm
870mm
1350mm
1660mm
Max. cutting width
360mm
630mm
780mm
1260mm
1570mm
Main board
ARM
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
COM/USB/U-disk
Feeding Roller
Al roller
Drive motor
Stepper motor
Carriage
Casting car
Stand
NONE/Metal bracket with basket
Speed
20-800mm/s
Force
20-500g
Power supply
AC 85-264V
Recommend software
Signmaster,Artcut,Coreldraw,Signcut,Flexi
Machine power
< 100W
Introduction:

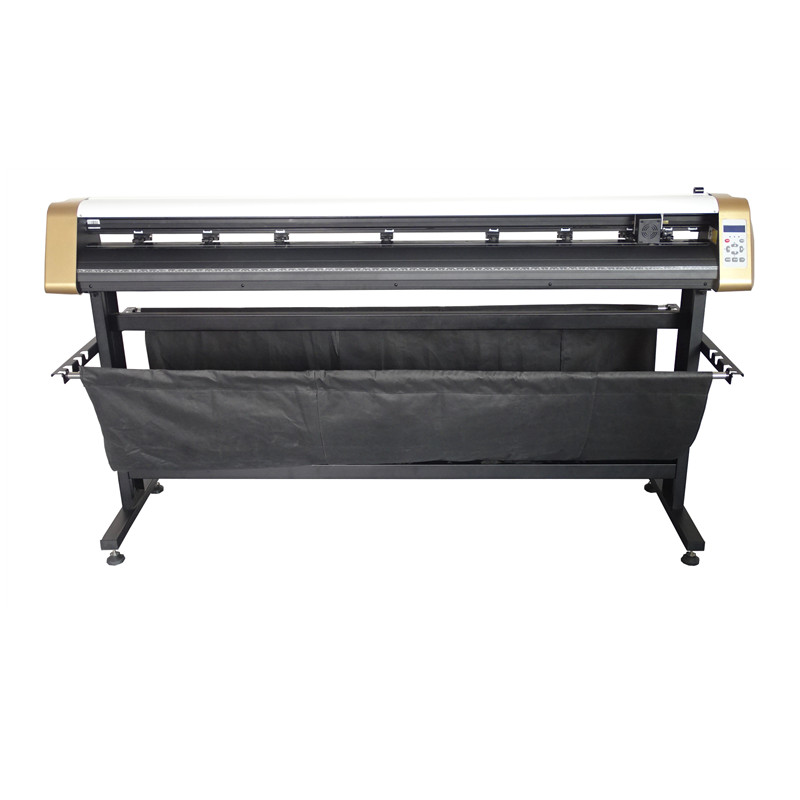

This Professional Vinyl Cutting Plotter with stand and paper basket comes with easy-to-use Design and SIGNMASTER software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork and draw your own shapes!
Comes with illuminated LCD screen and large control panel buttons. Adjustable speed and force is available by the touch of a button. The digital readout makes for accurate and precise settings.
Vinyl cutter machine, suitable for advertisement field, various signs, drawing for building structure or line drawing, automotive decoration, glass field, handicraft, supplementary for heat transfer, indoor decoration, label making, car beauty industry, fashion design, etc.
Detailed Images
Aluminum roll
Aluminum roll ensures the smooth moving of the cutting material.
Aluminum knurling stick high precision pressing wheels ensure the anti-deviation of paper feed by long distance.
--------------占位---------------
Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinklepaper, pressure balance.
Control Panel(Screen& Key Board)
Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate
Cast aluminum carriage
Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.
USB& Serial Ports
Support U card,USB and COM interfaces,customer can choose freely Standard USB 2.0 interface equipped. Flexible switch between USB and virtual serial ports. With COM and USB interface, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
Exhibition
Product Description
Model
KI-450AB
KI-720AB
KI-870AB
KI-1350AB
EH-1660
Max. media width
450mm
720mm
870mm
1350mm
1660mm
Max. cutting width
360mm
630mm
780mm
1260mm
1570mm
Main board
ARM
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
COM/USB/U-disk
Feeding Roller
Al roller
Drive motor
Stepper motor
Carriage
Casting car
Stand
NONE/Metal bracket with basket
Speed
20-800mm/s
Force
20-500g
Power supply
AC 85-264V
Recommend software
Signmaster,Artcut,Coreldraw,Signcut,Flexi
Machine power
< 100W
Introduction:
This Professional Vinyl Cutting Plotter with stand and paper basket comes with easy-to-use Design and SIGNMASTER software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork and draw your own shapes!
Comes with illuminated LCD screen and large control panel buttons. Adjustable speed and force is available by the touch of a button. The digital readout makes for accurate and precise settings.
Vinyl cutter machine, suitable for advertisement field, various signs, drawing for building structure or line drawing, automotive decoration, glass field, handicraft, supplementary for heat transfer, indoor decoration, label making, car beauty industry, fashion design, etc.
Detailed Images
Aluminum roll
Aluminum roll ensures the smooth moving of the cutting material.
Aluminum knurling stick high precision pressing wheels ensure the anti-deviation of paper feed by long distance.
--------------占位---------------
Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinklepaper, pressure balance.
Control Panel(Screen& Key Board)
Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate
Cast aluminum carriage
Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.
USB& Serial Ports
Support U card,USB and COM interfaces,customer can choose freely Standard USB 2.0 interface equipped. Flexible switch between USB and virtual serial ports. With COM and USB interface, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
Exhibition
Product Description
Model
TT-450
Max. media width
450mm
Max. cutting width
360mm
Contour type
Auto Contour
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/COM/U-disk
Feeding Roller
Steel thorn roller
Drive motor
Step motor
Carriage
Casting car
Stand
NONE
Speed
20-1200mm/s
Force
20-1000g
Power supply
AC 85-264V
Recommend software
ARTCUT, Graph-cut, Signcut、Signmaster,Flexi,CorelDRAW
Machine power
< 100W
Packing Size
60*31*33mm
Introduction:
1. The paper press wheel adopts the fixed force mode with double prings to ensure that the pressure on the press wheel is uniform, so that it will not run off and cannot move the paper when working;
2. High strength imported steel barbed roller, ensure the processing error, with silica gel pressure wheel, cutting large drawing, long drawing, handy;
3. Support three transmission modes of USB port/serial port/USB disk. No matter it is an old computer or a new computer, a desktop or a notebook, it can be perfectly online;
4. Sheet metal body, ensure accuracy of engraving and durable;
5. LCD control, intuitive understanding of speed, knife pressure and other parameters;
6. Large torque motor, gentle stepping, strong and powerful, easy to carve and draw thick and heavy materials;
7. Built-in 1G super memory, no crash, no jam, no doodle; 8. Compatible with all computer systems in the market, without any system or software
Detailed Images
Steel thorn roller
The segmented independent steel licker roller has high paper feeding accuracy, and the length of the engraved large picture is not easy to run off. The copper core integrated pressure wheel is durable and wear-resistant.high precision pressing wheels ensure the anti-deviation of paper feed by long distance.
--------------占位---------------
Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinklepaper, pressure balance.
Control Panel(Screen& Key Board)
HD LCD Touch screen. high brightness, high sensitive touch. Full touch screen will bring the technology era for the machine. It offers much convenience for the operation.
Cast aluminum carriage
Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.
USB& Serial Ports
Support U card,USB and COM interfaces,customer can choose freely, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
Exhibition
Product Description
Model
KH-375
KH-720
KH-870
KH1350
EH-1660
Max. media width
450mm
720mm
870mm
1350mm
1660mm
Max. cutting width
360mm
630mm
780mm
1260mm
1570mm
Main board
ARM
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/U-disk
Feeding Roller
Al roller
Drive motor
Stepper motor
Carriage
ABS carriage
Stand
NONE/Iron bracket
Speed
20-800mm/s
Force
20-500g
Power supply
AC 85-264V
Recommend software
Signmaster,Artcut,Coreldraw,Signcut,Flexi
Machine power
< 100W
Introduction:
Adjustable the pinch-rollers according to the paper width. Digital adjusts the force and speed to handle the cutting process. Inertial rotating blade holder enables more accurate and high-quality cutting. The emergency stop/start feature allows you to stop cutting and restart. Backlight LCD for easier handling of the working process. USB connection is accomplished through serial.
Application:
It can be used for cutting indicator/ advertisement sign/ window decoration/ automobile film/ heat transfer lettering film. Suitable for advertising industry, Automobile beauty industry, fashion design industry,etc,
Detailed Images
Aluminum roll
Aluminum roll ensures the smooth moving of the cutting material.
Aluminum knurling stick high precision pressing wheels ensure the anti-deviation of paper feed by long distance.
--------------占位---------------
Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinklepaper, pressure balance.
Control Panel(Screen& Key Board)
Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate
High accuracy carriage
The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.
USB& Serial Ports
Standard USB 2.0 interface equipped. Flexible switch between USB and virtual serial ports. With COM and USB interface, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
Exhibition
Product Description
Model
X-720
X-1350
X-1750
Max. media width
720mm
1350mm
1750mm
Max. cutting width
630mm
1260mm
166mm
Main board
ARM
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/U-disk
Feeding Roller
Al roller
Drive motor
Stepper motor
Carriage
Casting car
Stand
NONE/Metal bracket with basket
Speed
20-800mm/s
Force
20-500g
Power supply
AC 85-264V
Recommend software
Signmaster,Artcut,Coreldraw,Signcut,Flexi
Machine power
< 100W
Introduction:
This Professional Vinyl Cutting Plotter with stand and paper basket comes with easy-to-use Design and SIGNMASTER software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork and draw your own shapes!
Comes with illuminated LCD screen and large control panel buttons. Adjustable speed and force is available by the touch of a button. The digital readout makes for accurate and precise settings.
Vinyl cutter machine, suitable for advertisement field, various signs, drawing for building structure or line drawing, automotive decoration, glass field, handicraft, supplementary for heat transfer, indoor decoration, label making, car beauty industry, fashion design, etc.
Detailed Images
Aluminum roll
Aluminum roll ensures the smooth moving of the cutting material.
Aluminum knurling stick high precision pressing wheels ensure the anti-deviation of paper feed by long distance.
--------------占位---------------
Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinklepaper, pressure balance.
Control Panel(Screen& Key Board)
Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate
Cast aluminum carriage
Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.
USB& Serial Ports
Standard USB 2.0 interface equipped. Flexible switch between USB and virtual serial ports. With COM and USB interface, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.
Exhibition
The employees bustle around, preparing for another busy day of fulfilling orders and serving customers.
Prior to dispatch.thorough quality checks are conducted on each cutting plotter machine before it is securely packaged and wrapped in plastic film to ensure the safe and timely delivery of our pro...
Our holiday period is from May ist to May 5th, 2024.
If you want to inquire about our products, you are welcome to leave us a message and we willreply to you as soon aspossible.
Hefei Huiwo CNC provides you with professional and high-quality products.We are committed toproviding you wi...
We successfully delivered 2000 cutting plotters to the customer today.
With meticulous attention to detail, our skilled team meticulously prepared the latest batch of cutting plotters for dispatch. Each machine underwent rigorous quality control measures to ensure flawless performance and prec...
We are delighted to announce the recent visit of esteemed clients to our state-of-the-art cutting plotter machine factory. Their visit served as a testament to our commitment to excellence and our ongoing efforts to provide cutting-edge solutions to the industry.
During their visit, the clients were...
Hefei Huiwo Digital Control Equipment Participates in the 23rd Shanghai International Advertising Exhibition
We are thrilled to announce the successful participation of our cutting plotter machine factory in the 23rd Shanghai International Advertising Exhibition. As a leading provider of cutting-edg...
