KI-720AB Auto Contour cutting plotter machines vinyl cutting machine

KI-720AB Auto Contour cutting plotter machines vinyl cutting machine

Model Number:KI-720AB

Voltage:AC90-264v

Paper Feed Width:720mm

Cutter Pressure:20-500G

Cutting Width:630mm

Cutting Speed:20-800mm/s

Driver:Stepper Motor

Software:ARTCUT, Signcut, Signmaster, Flexi, Graph-cut

Warranty:1 Year

Knife press:20-500g

Item No :
001
Order(MOQ) :
10pcs
Payment :
KI-AB
Product Origin :
China
Color :
Color can be customized as your request
Shipping Port :
Shanghai
Lead Time :
4-7days
Weight :
28

Inquire Now

Product Details

Product Description

auto contour vinyl plotter cutting machine

Model	KI-450AB	KI-720AB	KI-870AB	KI-1350AB	EH-1660
Max. media width	450mm	720mm	870mm	1350mm	1660mm
Max. cutting width	360mm	630mm	780mm	1260mm	1570mm
Main board	ARM
Language	CH/EN
Accuracy	+/-0.01mm
Feeding accuracy	10m
Interface	COM/USB/U-disk
Feeding Roller	Al roller
Drive motor	Stepper motor
Carriage	Casting car
Stand	NONE/Metal bracket with basket
Speed	20-800mm/s
Force	20-500g
Power supply	AC 85-264V
Recommend software	Signmaster,Artcut,Coreldraw,Signcut,Flexi
Machine power	< 100W

Introduction:

This Professional Vinyl Cutting Plotter with stand and paper basket comes with easy-to-use Design and SIGNMASTER software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork and draw your own shapes!

Comes with illuminated LCD screen and large control panel buttons. Adjustable speed and force is available by the touch of a button. The digital readout makes for accurate and precise settings.

Vinyl cutter machine, suitable for advertisement field, various signs, drawing for building structure or line drawing, automotive decoration, glass field, handicraft, supplementary for heat transfer, indoor decoration, label making, car beauty industry, fashion design, etc.

auto plotter cutting machine vinyl cutter

Detailed Images

Aluminum roll

Aluminum roll ensures the smooth moving of the cutting material.

Aluminum knurling stick high precision pressing wheels ensure the anti-deviation of paper feed by long distance.

--------------占位---------------

Pinch roller

Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinkle
paper, pressure balance.

Control Panel(Screen& Key Board)

Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate

Cast aluminum carriage

Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.

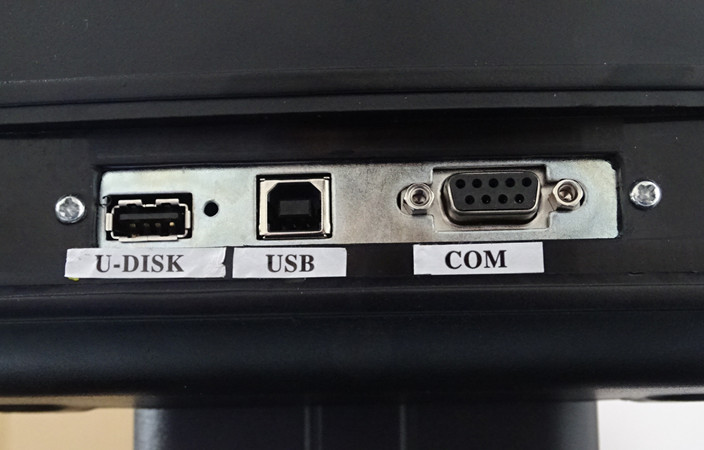

USB& Serial Ports

Support U card,USB and COM interfaces,customer can choose freely Standard USB 2.0 interface equipped. Flexible switch between USB and virtual serial ports. With COM and USB interface, make things much more convenient.

Product Presentation

Packing&Shipping

Company Introduction

Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.

Exhibition
