products

Home /Auto Contour Cutting Plotter /

X-1750 cutting plotter machines vinyl cutting machine

auto contour cutting plotter machine
cutting plotter machine vinyl cutter
plotter cutting machine vinyl cutter
cutting machine for vinyl sticker

X-1750 cutting plotter machines vinyl cutting machine

Model Number:X-1750
Voltage:AC90-264v
Paper Feed Width:1750mm
Cutter Pressure:20-500G
Cutting Width:1660mm
Cutting Speed:20-800mm/s
Driver:Stepper Motor
Software:ARTCUT, Signcut, Signmaster, Flexi, Graph-cut
Warranty:1 Year
Knife press:20-500g


  • Item No :

    X-720

  • Order(MOQ) :

    10pcs

  • Payment :

    TT

  • Product Origin :

    China

  • Color :

    Color can be customized as your request

  • Shipping Port :

    Shanghai

  • Lead Time :

    4-7days

  • Weight :

    28
Inquire Now
Product Description
plotter cutting machine vinyl cutter
Model
X-720
X-1350
X-1750
Max. media width
720mm
1350mm
1750mm
Max. cutting width
630mm
1260mm
166mm
Main board
ARM
Language
CH/EN
Accuracy
+/-0.01mm
Feeding accuracy
10m
Interface
USB/U-disk
Feeding Roller
Al roller
Drive motor
Stepper motor
Carriage
Casting car
Stand
NONE/Metal bracket with basket
Speed
20-800mm/s
Force
20-500g
Power supply
AC 85-264V
Recommend software
Signmaster,Artcut,Coreldraw,Signcut,Flexi
Machine power
< 100W

Introduction:

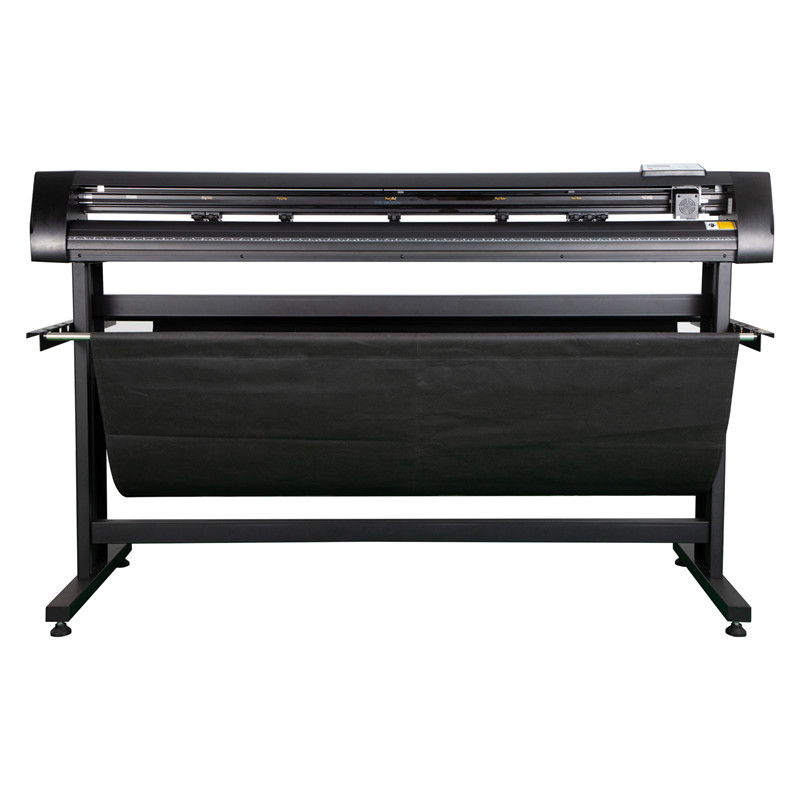

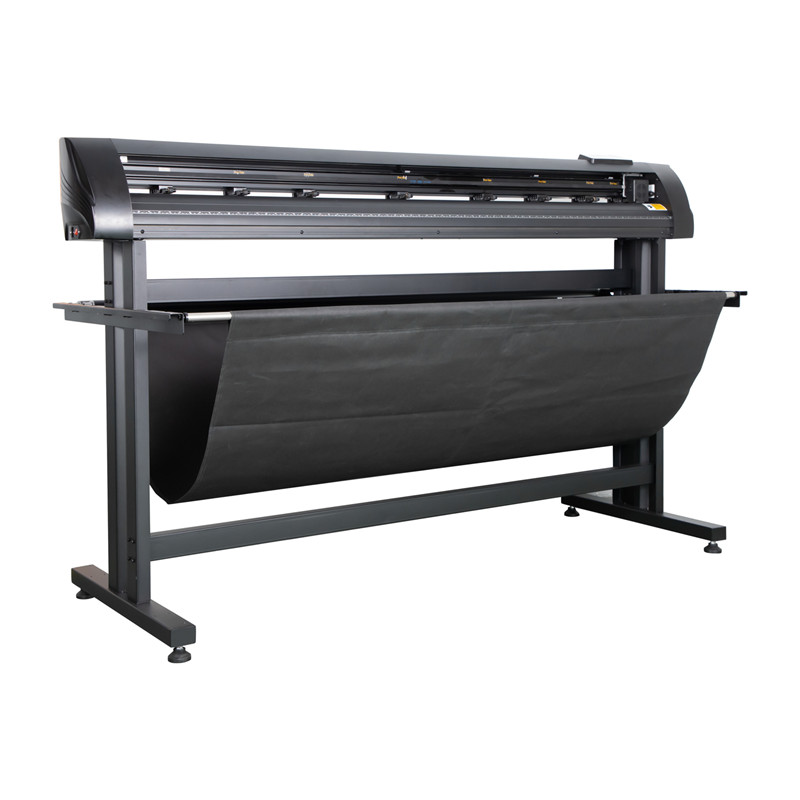

This Professional Vinyl Cutting Plotter with stand and paper basket comes with easy-to-use Design and SIGNMASTER software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork and draw your own shapes!
Comes with illuminated LCD screen and large control panel buttons. Adjustable speed and force is available by the touch of a button. The digital readout makes for accurate and precise settings.
Vinyl cutter machine, suitable for advertisement field, various signs, drawing for building structure or line drawing, automotive decoration, glass field, handicraft, supplementary for heat transfer, indoor decoration, label making, car beauty industry, fashion design, etc.
plotter cutting machine vinyl cutter
Detailed Images

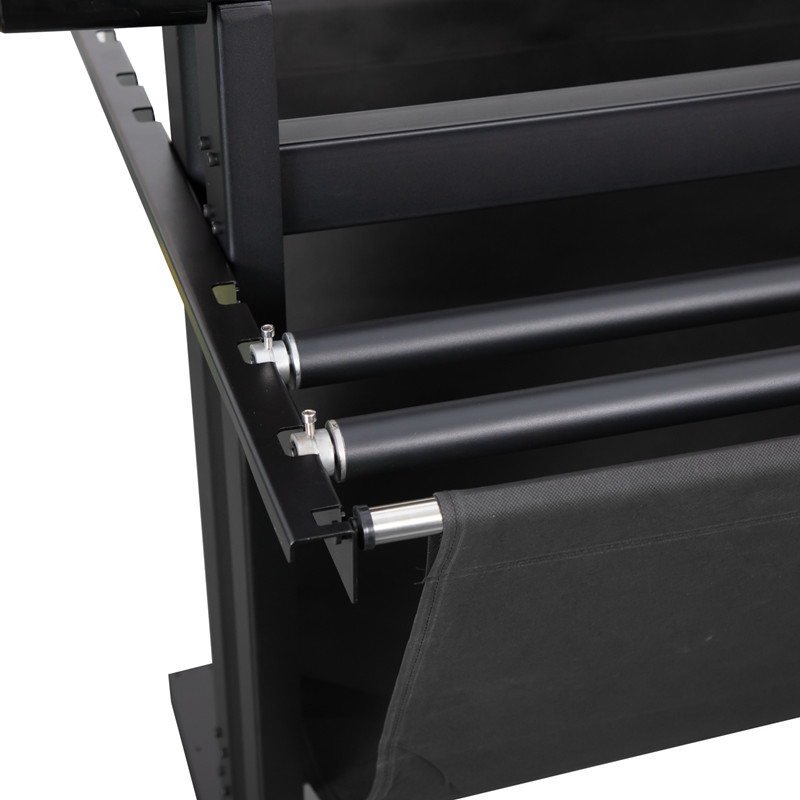

Aluminum roll

Aluminum roll ensures the smooth moving of the cutting material.

Aluminum knurling stick high precision pressing wheels ensure the anti-deviation of paper feed by long distance.

--------------占位---------------

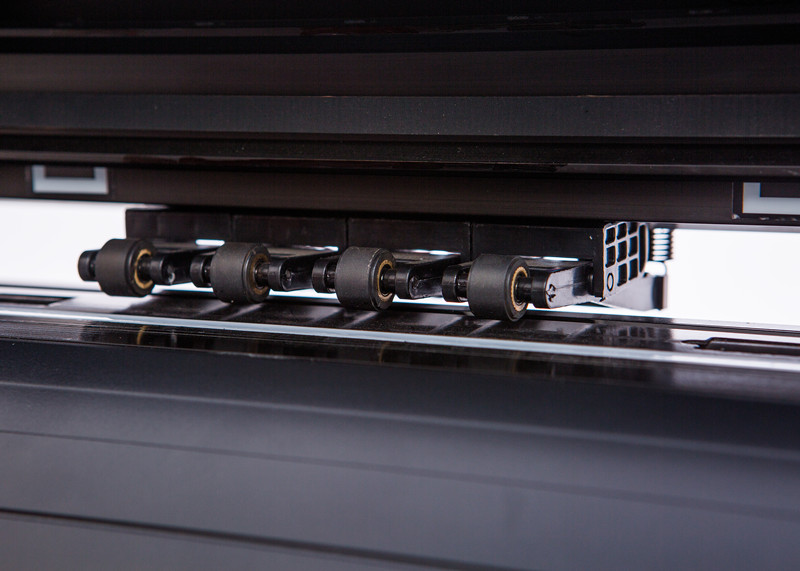

Pinch roller
Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinkle
paper, pressure balance.

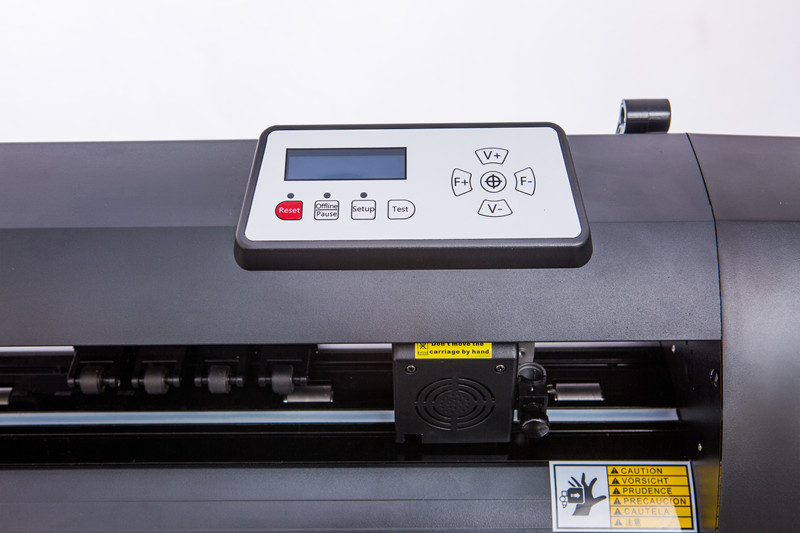

Control Panel(Screen& Key Board)
Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate

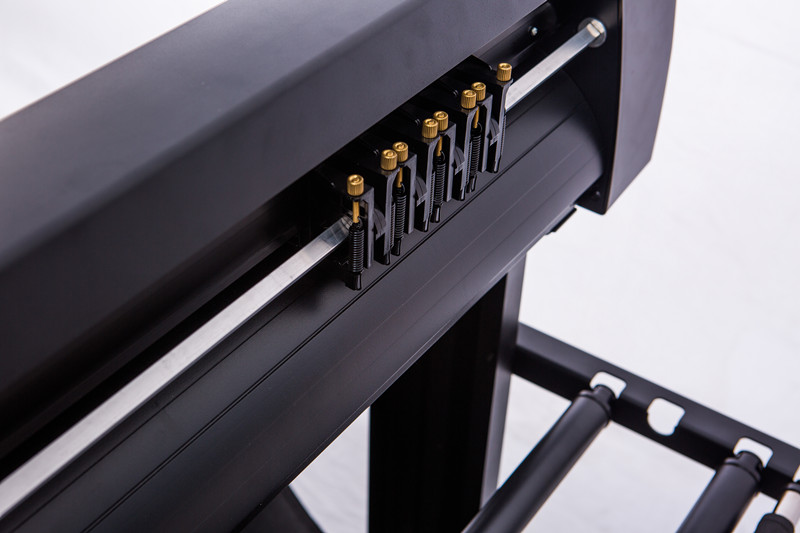

Cast aluminum carriage
Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.

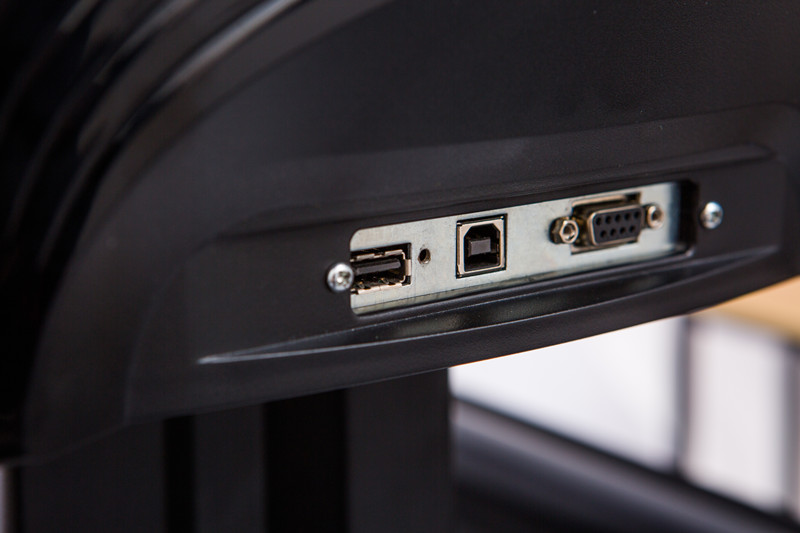

USB& Serial Ports
Standard USB 2.0 interface equipped. Flexible switch between USB and virtual serial ports. With COM and USB interface, make things much more convenient.
Product Presentation
Packing&Shipping
Company Introduction
Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.

Exhibition
