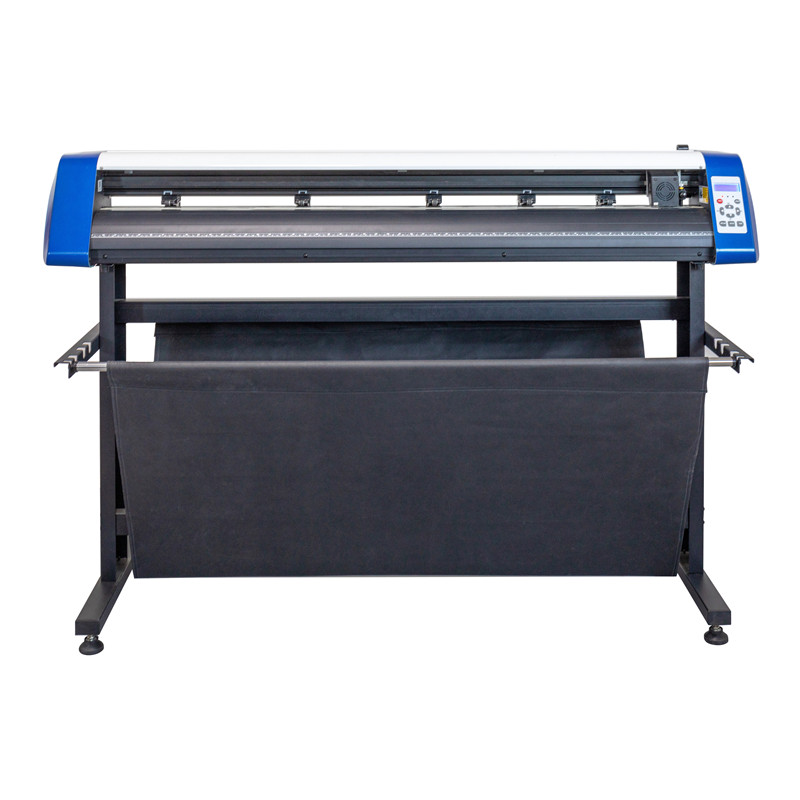

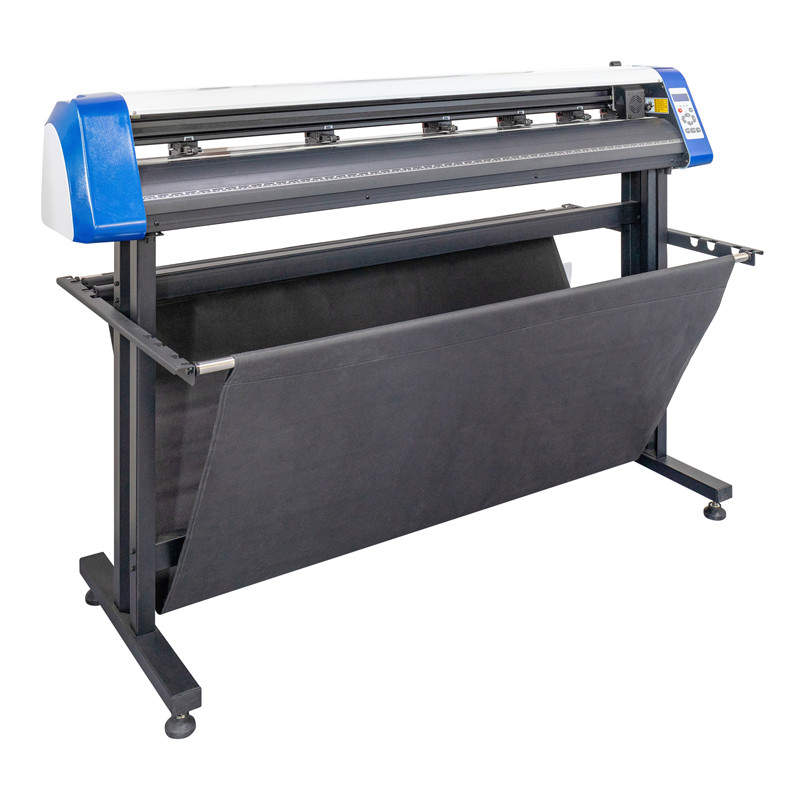

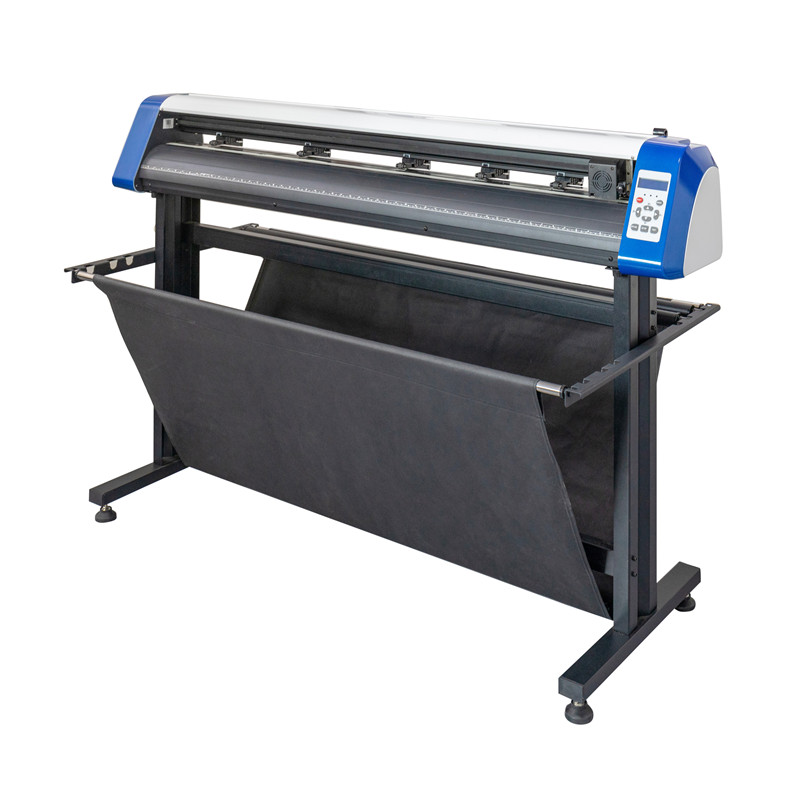

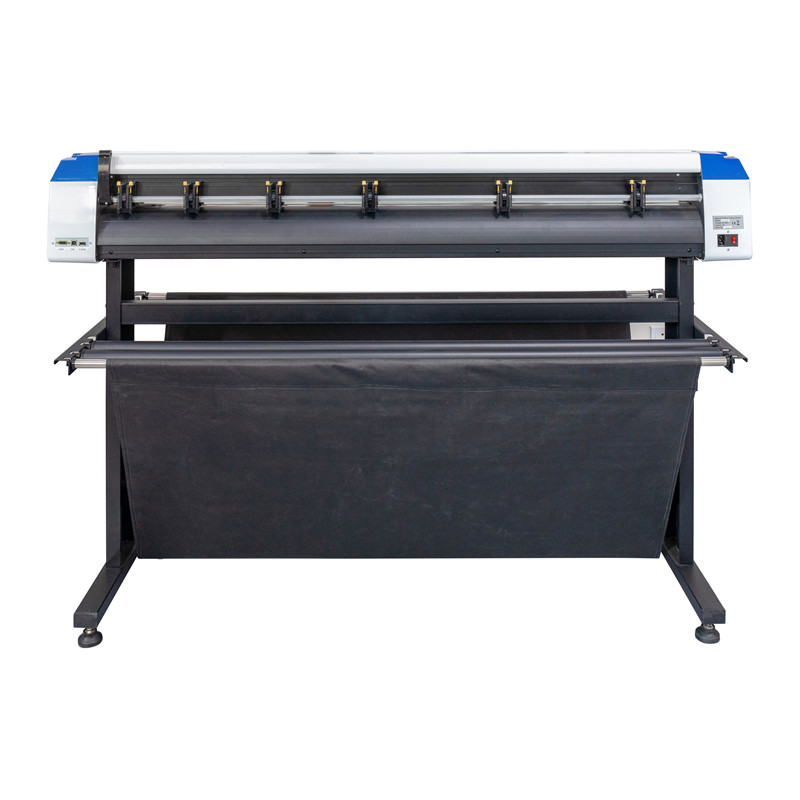

EH-1350AB Automatic contour plotter self-adhesive Sticker cutting plotter

EH-1350AB Automatic contour plotter self-adhesive Sticker cutting plotter

Model Number:EH-1350AB

Contour type:Auto Contour

Voltage:AC90-264v

Paper Feed Width:1350mm

Cutter Pressure:20-500G

Cutting Width:1260mm

Cutting Speed:20-800mm/s

Driver:Stepper Motor

Software:ARTCUT, Signcut, Signmaster, Flexi, Graph-cut

Warranty:1 Year

Knife press:20-500g

Item No :
001
Order(MOQ) :
10pcs
Payment :
EH-1350AB
Product Origin :
China
Color :
Color can be customized as your request
Shipping Port :
Shanghai
Lead Time :
4-7days
Weight :
28

Inquire Now

Product Details

Product Description

Model	EH-450AB	EH-720AB	EH-1350AB	EH-1750AB
Max. media width	450mm	720mm	1350mm	1750mm
Max. cutting width	360mm	630mm	1260mm	1660mm
Main board	ARM
Contour type	Auto Contour
Language	CH/EN
Accuracy	+/-0.01mm
Feeding accuracy	10m
Interface	USB/COM/U-disk
Feeding Roller	Al roller
Drive motor	Stepper motor
Carriage	Casting car
Stand	NONE/Metal bracket with basket
Speed	20-800mm/s
Force	20-500g
Power supply	AC 85-264V
Recommend software	Signmaster,Artcut,Coreldraw,Signcut,Flexi
Machine power	< 100W
Packing Size	750330350mm	1020330420mm	1650330420mm	2073342CM
Weight	14KG	38	27KG	45KG

Introduction:
1. The paper press wheel adopts the fixed force mode with double springs to ensure that the pressure on the press wheel is
uniform, so that it will not run off and cannot move the paper when working;
2. High strength imported steel barbed roller, ensure the processing error, with silica gel pressure wheel, cutting large drawing,
long drawing, handy;
3. Support three transmission modes of USB port/serial port/USB disk. No matter it is an old computer or a new computer, a desktop
or a notebook, it can be perfectly online;
4. Sheet metal body, ensure accuracy of engraving and durable;
5. LCD control, intuitive understanding of speed, knife pressure and other parameters;
6. Large torque motor, gentle stepping, strong and powerful, easy to carve and draw thick and heavy materials;
7. Built-in 1G super memory, no crash, no jam, no doodle;
8. Compatible with all computer systems in the market, without any system or software

Detailed Images

Pinch roller

Double spring paper holder, black wear-resisting press wheel, long service life, stable paper walking, no paper jam, no wrinkle
paper, pressure balance.

Control Panel(Screen& Key Board)

Adjustable Force & speed Digital control panel allows adjustment of cutting force and speed, for more precise and controllable cutting. High quality LCD screen Clear key board with indicator light Easy to operate

Cast aluminum carriage

Cast aluminum carriage, all-metal body, one-time molding, the tool seat is not easy to slip. The engraving is stable and accurate. The body is light, and the metal material is not easily damaged.

USB& Serial Ports

Support U card,USB and COM interfaces,customer can choose freely, make things much more convenient.

Product Presentation

Packing&Shipping

Company Introduction

Hefei Huiwo Digital Control Equipment Co., Ltd focuses on the industrial and trade integration production enterprises of digital control equipment such as engraving machine, lithography machine, engraving machine, label cutting machine, and has the ability to independently develop and produce numerical control engraving equipment. Hefei Huiwo has always been committed to the production and sales of professional advertising equipment with international advanced standards.Our company's products are positioned in the high-end customer base in the market, which can provide different product solutions for the specific needs of customers. We have an independent system development team, mechanical design team, to ensure the rationality of product design and product stability, while constantly providing users with more related products. Sales personnel have good business literacy and personal skills, ensure timely and effective communication with customers, provide a complete after-sales service system, establish customer, machine interaction support. Timely and effective response and solution to customers ' needs and questions, so that customers have a positive and satisfactory attitude to our company.

Exhibition

Hot Tags :

auto contour cutting plotter machine

contour cutter plotter machine

contour cut plotter

contour cutting plotter

plotter printer cutting machine

cutting plotter support flexsign signmaster coreldraw plugin
